Wall Washer Series

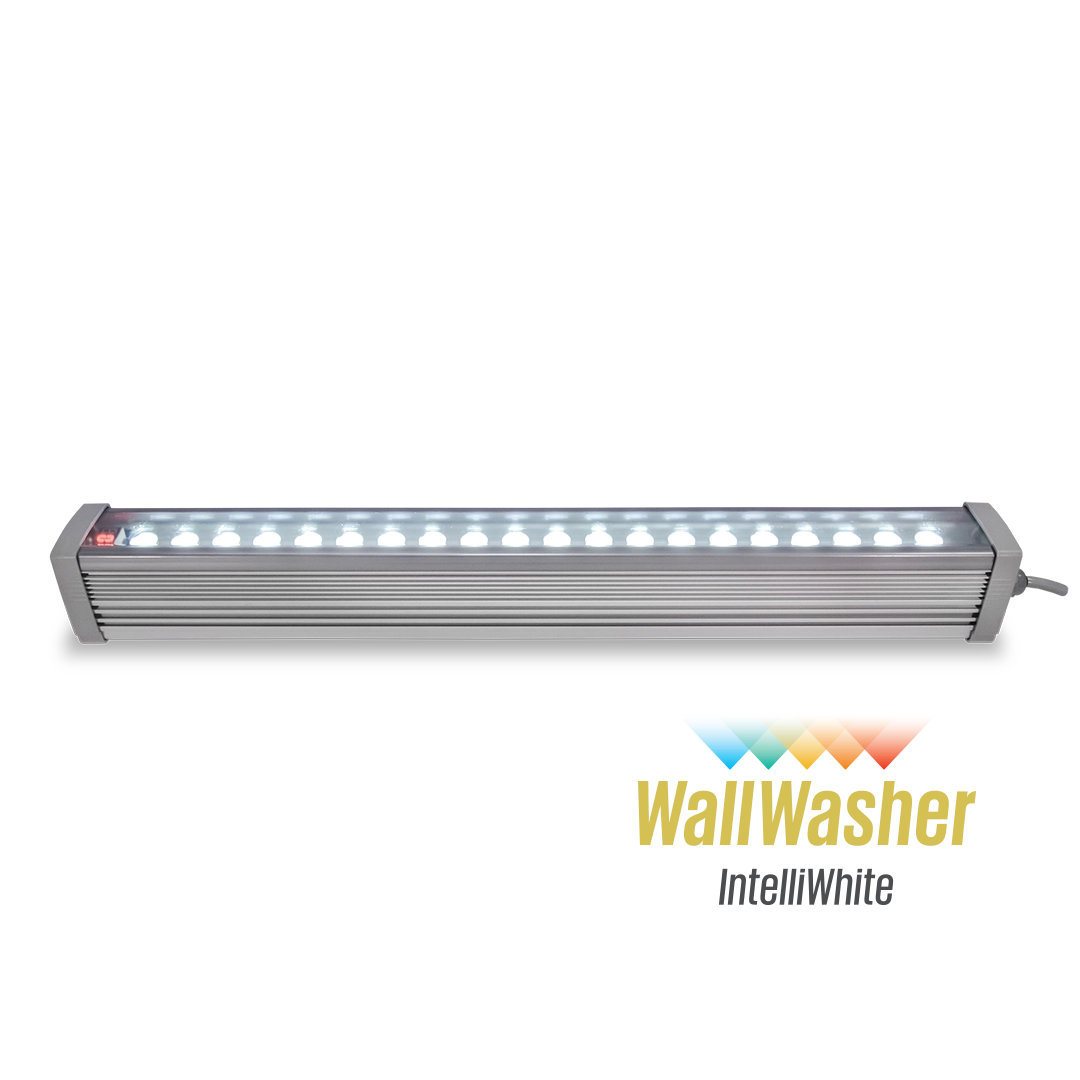

WallWasher IntelliWhite
The WallWasher IntelliWhite reproduces shades of white just like natural light, successfully providing a range of 3000-6500K. With an IP66 socket cable structure, this device is easy to install, while the LED Display screen simplifies address tracking, and magnetic buttons facilitate the addressing process. These features provide significant advantages, especially in devices used in industrial and outdoor applications.
| Nominal Power: | 25W | Address Screen: | 7 Segment LED Screen * Optional |
| Operating Voltage: | 90..264VAC – 50/60Hz | Body: | Anodized Extruded Aluminum |
| Power Factor: | >0.9 | Diffuser: | Transparent, UV PC (CoEx) |
| Protection Class: | Insulation Protection Class I (Protective Grounding) | End Cap: | Glass Reinforced PC |
| LED Brands: | DYNAMIC WHITE | Mounting Brackets: | Stainless Steel – Single Screw |
| Color Depth: | RGBW / 16 Million | Connection Type: | Plug-in, Quick Disconnect |
| LED Types: | Hi-Power 20 LEDs 10x3000K 10x6500K | IP Class: | IP66 |
| Number of LEDs: | 20 | IK Class: | IK07 |
| Color Rendering Index (CRI): | >80 | Operating Temperature: Storage Temperature: | -20°…+50° -20°…+65° |
| Luminous Flux: | 2300lm | Lifespan at 25°C L80/B50: | >60,000 hours |
| Viewing Angle: | 15°/30°/40°/60°/90° | Mounting Type: | Wall or Floor Mounted |
| Control Interface: | DMX512 | Dimensions: | 52cm x 6cm x 7cm |
| DMX Addressing Type: | Handheld Terminal Touchless Addressing * Optional | Net Weight: | 1.5kg |
